Hello, my name is François Carouge. Thank you for welcoming me to present in this session of Cpp Bay Area.
Do you know which launch this is? And do you know how the mission concluded?
// Built-in types:
double run_duration_seconds{42.};
double building_height_meters{99.};
// Unit types:
std::chrono::seconds run_duration{42.}
quantity building_height{99. * m};
You may have seen code that uses the built-in types to represent entities with additional meaning: the duration of a run in seconds or the height of building in meters. The semantic of the variable is not encoded in its type. It is sometimes implicitely attached to the variable in its name. Or it is sometimes described in a comment somewhere. Or sometimes relies on the implicit convention of systematic usage of the international system of units in a code base such that units are rarely identified explicitely. All of our tools struggle to protect users from invalid operations such as assiging the time value to the building height variable. Only built-in implicit type conversion are protected with compiler flags. And without external controls, resulting defects may end up crashing, on Mars.
// Vector with built-in types:
vector v0{1., 2., 3.};
// std::vector<double>
// std::span<double, 3>
// Eigen::Vector<double, 3>
// Vector with unit types:
vector v0{1. * m, 2. * m, 3. * m};
// std::vector<quantity<m>>
// std::span<quantity<m>, 3> ?
// Eigen::Vector<quantity<m>, 3> ??
// Do as the built-in types? double * double = double 🗸
// length * length = area 𐄂
There exists a variety of linear algebra libraries in C++: the C++26 `std::linalg` combined with the C++23 `std::mdspan`, or higher order libraries such as Eigen. We will use the Eigen types in our examples today. A common data structure type found in linear algebra is that of a colum vector, we will call that a vector. Traditional representations of a linear algebra vector can be made with `std::vector`, C-arrays, `std::span`, or an `Eigen::Vector`. Tradeoffs exists for sizes known at compile-time or at run-time, owned memory or views over a range, and linear algebra operations availability.
// Vector with heterogeneous unit types:
vector v0{1. * m, 2. * m / s, 3. * m / s2};
// vector type?
// Matrix with heterogeneous unit types:
matrix m0{{1. * m, 2. * m / s },
{3. * m / s, 1. * m / s2}};
// matrix type???
More difficulties arise when the linear algebra vectors have heterogenous types. You can store the heterogenous type in a `std::tuple`. What about the linear algebra operations? The existing linear algebra libraries are simply not equipped to allow such idiomatic code.What do you think? Can we still design strongly typed linear algebra using yet another level of indirection?
Before I detail these references that helped me prepare this library: Who is familiar with the 1878 Bertrand-Buckingham π theorem? The theorem proves linear systems can be rewritten in terms of a set of dimensionless parameters. So technically we could always transform the linear systems to use dimensionless parameters. Unfortunately usage in implementation is hardly systematic. Anyway the theorem does not help in exchanging physical algebraic information through software interfaces. The Bertrand-Buckingham π theorem is insufficient.
Objective
// Update the estimate uncertainty of a Kalman filter:
p = (i - k * h) * p * t(i - k * h) + k * r * t(k);
std::println("{}", p);
// [[8.92 m², 5.95 m²/s, 1.98 m²/s²],
// [5.95 m²/s, 503.98 m²/s², 334.67 m²/s³],
// [1.98 m²/s², 334.67 m²/s³, 444.91 m²/s⁴]]
I author a Kalman filter C++ library. Briefly, the Kalman filter is a control theory tool applicable to signal estimation, sensor fusion, or data assimilation problems. This sample shows an implementation of the estimate uncertainty update of a Kalman filter. It is simple, yet non-trivial. A fair benchmark, objective for today. The estimate uncertainty P shown with its nine values comes from the estimation of the position, velocity, and acceleration of an object in one-dimension. There exists filters with dozens, hundreds, or more states. Filters with numerous states can get complicated. Development difficulties and safety risk arise in ensuring a parameter is used in the expected position and with the expected units. This was my motivation for the typed linear algebra library.

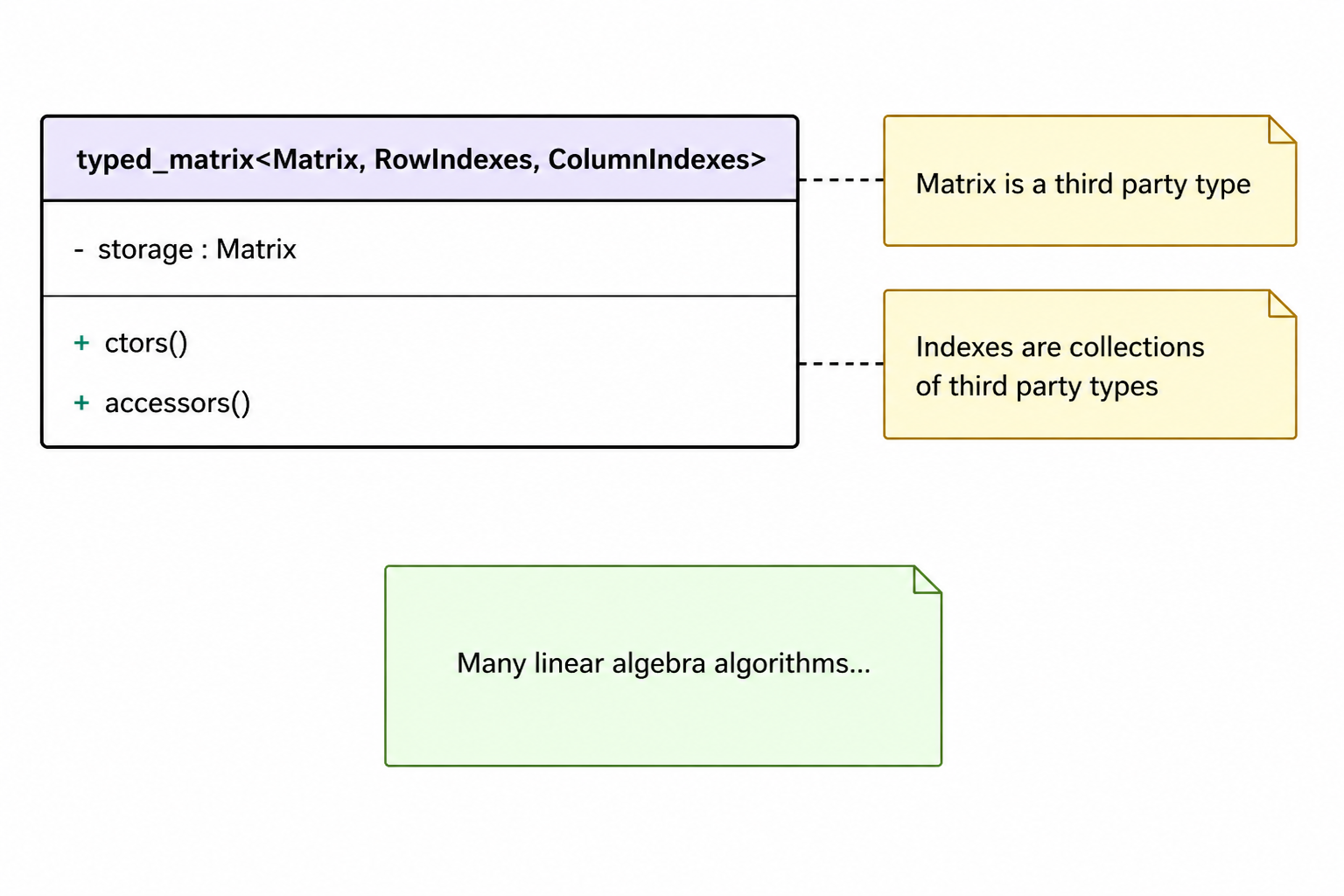

I propose the `typed_matrix` class to compose a third party linear algebra matrix type. This matrix type is injected through a template parameter `Matrix`. This Matrix parameter and its usage nay need to transparently accomodate expression templates techniques which permits compile-time reduction of complex linear algebra expressions. I propose not to limit memory model to ownership or view but to support both. It is perhaps less common in C++. The strong types of the matrix elements are encoded in a collections of types. What do you use for collections of types? Why are there two collections of types? Isn't one collection of N-times-M types sufficient to encode all the individual types of the matrix?
template <typename Matrix,
typename RowIndexes,
typename ColumnIndexes>
class typed_matrix {
Some Public Member Types
// [i-th, j-th] element type:
template <int RowIndex,
int ColumnIndex>
using element =
product<std::tuple_element_t<RowIndex,
typename Matrix::row_indexes,
std::tuple_element_t<ColumnIndex,
typename Matrix::column_indexes>>;
We declare the `typed_matrix` class with its three template parameters. These template parameters are also available as member types, not shown here in this class declaration since they are merely aliases.
Some Member Variables
// Sizes are static inline constexpr:
int rows = std::tuple_size_v<row_indexes>;
int columns = std::tuple_size_v<column_indexes>;
private:
// Underlying algebraic backend data:
Matrix storage;
The count of rows and columns will be useful as public member variables. And the rank, or dimension of the matrix, not shown here.
These members are static inline constexpr. We will omit all attribtutes (constexpr, nodiscard, and the occasional `std::remove_cvref_t`) in the slideware today for readability. The code is also slightly simplified at times, see the library on GitHub for the details. Please, mentally fill in attributes as we go. We will also not deal with dynamically sized matrices today.
Some Constructors
// Safe default:
typed_matrix()
requires std::default_initializable<Matrix>;
// Compatible copy conversion:
typed_matrix(const same_as_typed_matrix auto &other);
// Singleton matrix from convertible value.
typed_matrix(
const std::convertible_to<element<>> auto &value)
requires singleton_typed_matrix<typed_matrix>;
The destructor is not shown here. You can imagine a default constexpr destructor.
Neither I will show the copy- and move- assignment operators equivalent to these constructors.
Most matrice libraries made the choice of an unitialized default constructor for historical or performance reason. For a safer linear algebra library, it is appropriate to have a zero-initialized default constructor if the type-erased third party matrix type supports a default initialization. The implementation, not shown here, ensures zero-initialization.
The compatible copy conversion provide support for safely convertible but not strictly identical typed matrix. One example is that of a matrix where the rows and indexes types are merely transposed. Another example is that of the element types represent the same physical quantity type but the C++ template are not quite identical. Similarly for compatible move conversion.
The singleton constructor helps the typed matrix to behavior more like built-in types where it can.
// Uniformly typed vector from array:
typed_matrix(const element<> (&elements)[rows * columns])
requires uniform_typed_matrix<typed_matrix>
and one_dimension_typed_matrix<typed_matrix>;
// Uniformly typed matrix from init-list of init-lists:
template <typename Type>
typed_matrix(
std::initializer_list<std::initializer_list<Type>> row_list)
requires uniform_typed_matrix<typed_matrix>;
The constructor from an array is valid for uniform vectors.
We can at least provide a constructor accepting an initializer-list of initializer-list for a type giving a uniformly typed matrix.
// Vector from values:
typed_matrix(const auto &first_value,
const auto &second_value,
const auto &...values)
requires one_dimension_typed_matrix<typed_matrix>;
// ! Underlying matrix conversion:
explicit typed_matrix(const Matrix &other);
And we can also provide an easy construction for a column or row vector of heterogeneous quantities. Note the parameter pack with two preceding mandatory parameter to disambiguate from other constructors.
The last constructor is a sharp edge. The tradeoffs are not always easy and so we may need to be able to construct a typed matrix from its underlying matrix type. This is helpful for implementing operations without friendship, or supporting expression templates. This is a problem.
Some Concepts
// A typed matrix concept:
template <typename Type> concept same_as_typed_matrix =
std::same_as<Type, typed_matrix<typename Type::matrix,
typename Type::row_indexes,
typename Type::column_indexes>>;
// A uniformly typed matrix concept:
template <typename Type> concept uniform_typed_matrix = // ...
// is a typed matrix, and
// each element are of the same type.
The constructors of the typed matrix used concepts to ensure they are meanigful for a given template instantiation of a typed matrix. We show here a couple interesting concepts among the the 10 or so concepts present and used in the library.
In some cases, we want to enable behavior solely for typed matrices. This concept presented with an interesting challenge in its definition: the template parameters of the typed matrix could not be passed in the concept nor deduced. The neat idiom to permit usage of the concept while passing only the single type to check was to re-use the type's under evaluation for its member types. Note the Type parameter is found on both sides of the same type concept.
Some Accessors
// Compile-time bound-checked typed element read/write:
template <auto... Indexes>
decltype(auto) at(this auto &&self)
requires(sizeof...(Indexes) >= rank);
// ! Subscript operator access:
template <typename... Indexes>
decltype(auto) operator[](this auto &&self, Indexes... indexes)
requires(sizeof...(Indexes) >= rank)
and((index<Indexes> && ...)
or uniform_typed_matrix<typed_matrix>);
// ! Underlying data access:
decltype(auto) data(this auto &&self);
}; // typed_matrix
It seems the best we can do for type-safe compile-time bound-checked access is the standard `at` member, providing the i-th, j-th position as non-type template parameters.
Next is the subscript operator, another sharp edge, here we see it with deducing this to deduplicate operators. The example shown here is that of the square bracket index operator. There is also the identical historical parentheses index operator not shown here. One difficulty with this operator is the lack of possibilities to provide compile-time bound checking. Another difficulty is that in C++ the return type is fixed at compile-time. We cannot vary the return type based on the element accessed at runtime. Therefore we limit this syntax to uniform matrices to preserve our type safety. This is a problem. It may be judicious to not support this accessor at all. Similarly for the parentheses-based index access operator not shown here.
Lastly we show the third and last sharp edge, the traditional underlying data accessor member function in the typical standard. Again this will be useful for implementing operations.

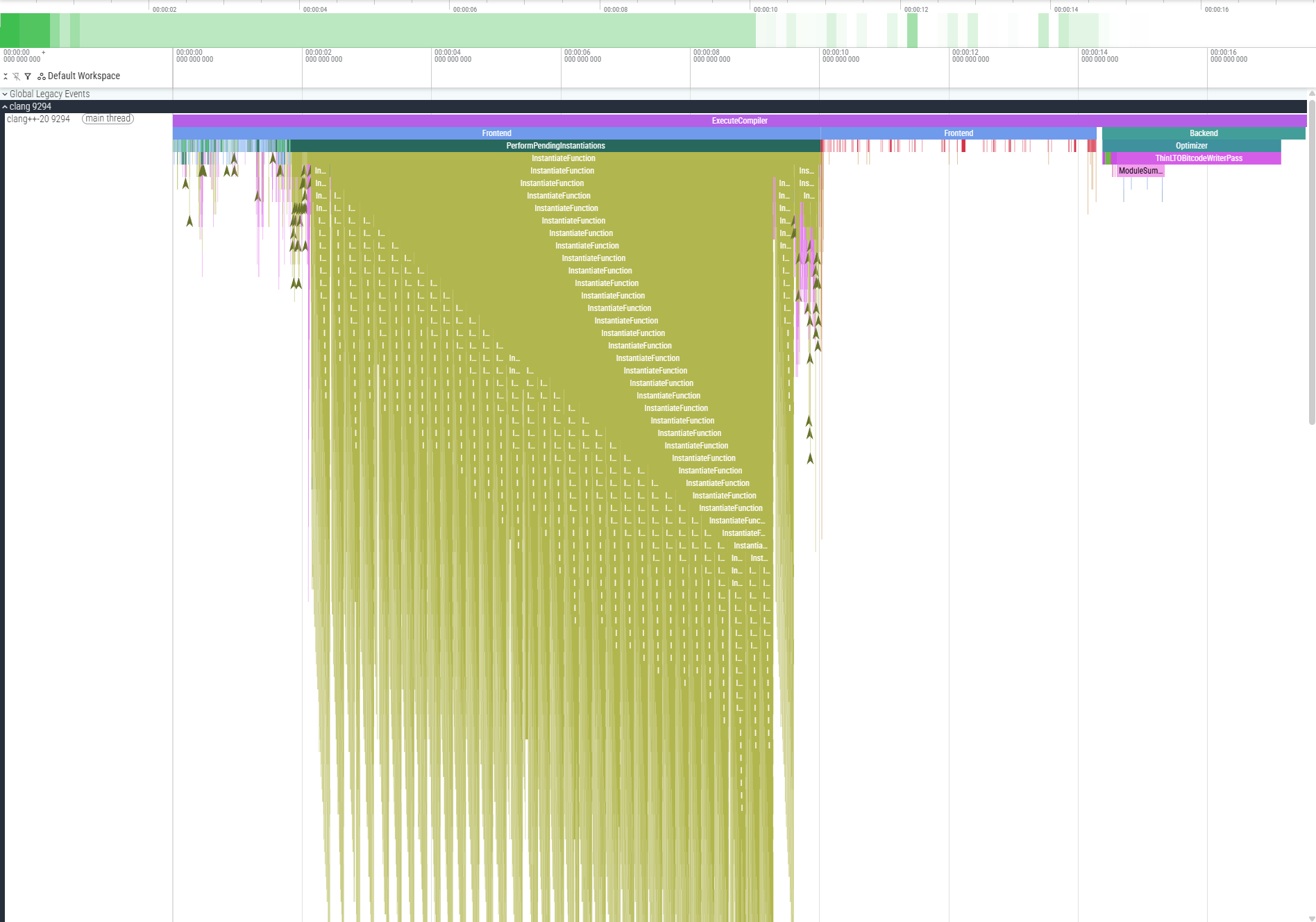

Compilers still had some difficulties with the deducing this syntax in this form here in addition to the decltype(auto) return types. Some of the compilers defects have been fixed in newer version and we may be able to reduce the duplication in the library.
Some Algorithms
auto operator+ (const same_as_typed_matrix auto &lhs,
const same_as_typed_matrix auto &rhs);
auto operator* (const same_as_typed_matrix auto &lhs,
const same_as_typed_matrix auto &rhs);
void matrix_product (const same_as_typed_matrix auto &lhs,
const same_as_typed_matrix auto &rhs,
same_as_typed_matrix auto &result);
auto transposed (const same_as_typed_matrix auto &value);
void scale (const auto &α,
same_as_typed_matrix auto &x);
Adding algorithms, or operations against the typed matrix is merely done by adding functions. We've made the choice to avoid the friendship coupling to enable extensibility.
The first two operators, the additions, are two overloads among four variations: adding two matrices, and adding a value to a 1-by-1 matrix. There are conditions on the types added, size of the matrix, convetibility of the types.
The matrix-matrix-product operator shown here is the general case product among six other overloads.
The matrix-matrix-divison operator, also has six overloads. It has the particularity to be configurable via yet another customization point object to select the end-user's prefered division implementation from a matrix decomposition solver. Matrix division divides the community. Pun intended. Should it exist? In which cases? Remember linear algebra is not commutative, a matrix may not have an inverse, and there may exists multiple different solutions to the same division.
Should the transposed operation shown here be done in place?
The scale operation, alpha x, done in place here, imposes a dimension-less restriction on the scalar, because the index types of the typed matrix are fixed.
All in all the library wants to provide a drop-in support for both Eigen and `std::linalg` matrix algorithms were possible.
Linear Algebra Layers
Layer
Abstraction
Implementation
High-Level Math
Domain specific
Application
Low-level Math
Linear systems, least-squares, eigenvalue
LAPACK, Eigen, Armadillo, MatX
Performance Primitives
Vector, matrices, operations & solvers
std::linalg, BLAS
Fundamentals
Multidimensional arrays, iteration
std::execution, std::mdspan, std::simd
At CppCon 2023 Mark Hoemmen introduced us to `std::linalg` coming to the standard. His talk included an abstraction layer nomenclature that I paraphrased here. On top of the hardware we find the fundamental support, used by performance primitives where specialized performance hardware implementation are reasonable. Themselves used by the low-level linear algebra mathematics which can be applied to domain specific problems such as statistical inference, physical simulation, control theory.
Where would you place the typed linear algebra support in this table? Perhaps somewhere between application specific high-level mathematics and/or around low-level mathematics? Experimentation seems to support either.
Explored Implementation
Layer
Implementation
High-Level
Kalman
Low-Level
Eigen
Primitives
BLAS
Element Type:
A variety of implementation compositions were explored. At the high-level math applications the Kalman algortihms were the principal motivation.
For low level math, both Eigen and LAPACK have shown to be usable.
And the underlying performance primitives, operations, and solvers can be chosen at linking, loading time. The native Eigen kernels, the BLAS implementation, or Nvidia BLAS implementation, and C++26 std::linalg have shown to be usable.
As far as element type goes, we've talked here about mp-units, and std::chrono. There is a quirky property that emerges from the compositions. It turns out, that fundamental are valid element types, after all, they are in the classical linear algebra. This property allows to create a drop-in replacement typed linear algegra type. Even more curious, the underlying matrix type of the typed matrix can be a nested typed matrix itself! This property will come in handy in future work.
Examples
template <typename To, mp_units::Quantity From>
struct element_caster<To, From> {
To operator()(From value) {
static_assert(std::same_as<To, typename From::rep>);
return value.numerical_value_in(value.unit);
}
};
template <typename... Types>
using column_vector = typed_column_vector<
Eigen::Vector<double, sizeof...(Types)>,
Types...>;
using position = quantity<mp_units::isq::length[m]>;
using state = column_vector<position, velocity>;
using stateᵀ = row_vector<position, velocity>;
So far we have seen some of the principles of the library. Before we take a look at the implementation, we can see a few usage examples. We start with a little bit of boilerplate.
This first example fragment shows the customization of the element cast. It teachs the library how to cast an element from its underlying type to its strong type. I don't show here the other conversions, from element to underlying, or the reference conversion.
state x0{3. * m, 2.5 * m / s};
std::println("{}", x0); // [[3 m], [2.5 m/s]]
std::println("{}", x0.at<1>()); // 2.5 m/s
stateᵀ x0ᵀ{transposed(x0)};
std::println("{}", x0ᵀ * x0); // ?
// ^~
// error: static assertion failed:
// Matrix multiplication requires compatible types.
std::println("{}", x0 * x0ᵀ);
// [[9 m², 7.5 m²/s], [7.5 m²/s, 6.25 m²/s²]]
And now the actual usage. The state column vector x0 is a heterogenously typed vector of position and velocity. The library's std::formatter specialization makes the vector printable.
The at member permits to access the element both to write a new value to the element, or to read the element value.
What do you think is the result of the row-vector--column-vector product?
// Non-owning typed vector:
template <typename... Types>
using column_vector =
typed_column_vector<
std::mdspan<
double,
std::extents<std::size_t, sizeof...(Types), 1>>,
Types...>;
std::vector v0(2, 0.);
std::mdspan s0{v0.data(), std::extents<std::size_t, 2, 1>{}};
state x0{s0};
// ...
matrix_product(x0, x0ᵀ, p);
std::println("{}", p);
// [[9 m², 7.5 m²/s], [7.5 m²/s, 6.25 m²/s²]]
Interestingly, no memory ownership assumption constrain the typed matrix. Therefore the typed matrix can compose a `std::mdspan`. Here, the typed column vector is defined with `std::mdspan`, the chosen underlying data representation, and an equivalent column `std::extends`.
Matrix-Matrix Product
auto operator*(const same_as_typed_matrix auto &lhs,
const same_as_typed_matrix auto &rhs) {
// Type safety?
using row_indexes = product<lhs_row_indexes,
std::tuple_element_t<0, lhs_column_indexes>>;
using column_indexes = product<rhs_column_indexes,
std::tuple_element_t<0, rhs_row_indexes>>;
return make_typed_matrix<row_indexes, column_indexes>(
lhs.data() * rhs.data());
}
The matrix-matrix product shows a few of the techniques needed to implement the operations. The operations are totally external, no operations are member functions, no friendship.
The operations leverage ADL, overloads, and concepts to transparently select the most appropriate implementation.
Overloads for matrix-vector products, matrix-scalar products, singleton products are provided, not shown here.
This is the generic matrix-matrix product. Operations typically follows this idiomatic implementation: first verify linear algebra and type safety requirements, contracts, assertions; second express the return row and column index types; third and last perform the operation through the backend and using a factory function to decay and forward the resulting types while retaining the expression templates of the backend.
For the matrix-matrix product, it appears that the resulting type is the matrix where the row index types are constituted by the product of the left-hand-side matrix row index types with the 0-th column type, and equivalently for the resulting column index types.
What do think you are some of the requirements, assertions, or contracts needed to ensure the matrix-matrix product is a correct and safe operation?
static_assert(lhs::columns == rhs::rows,
"Matrix-matrix product requires compatible sizes.");
A first requirement is that the shapes of the matrices are compatible.
The left-hand-side matrix needs as many columns as the number of rows of the right-hand-side matrix.
for_constexpr<0, lhs::rows, 1>([&](auto i) {
using lhs_row = product<std::tuple_element_t<i, lhs_row_indexes>,
lhs_column_indexes>;
for_constexpr<0, rhs::columns, 1>([&](auto j) {
using rhs_column = product<rhs_row_indexes,
std::tuple_element_t<j, rhs_column_indexes>>;
for_constexpr<0, lhs::columns, 1>([&](auto k) {
static_assert(
std::is_convertible_v<
product<std::tuple_element_t<k, lhs_row>,
std::tuple_element_t<k, rhs_column>>,
product<std::tuple_element_t<0, lhs_row>,
std::tuple_element_t<0, rhs_column>>>,
"Matrix-matrix product requires compatible types.");});});});
A second requirement is that each of the element products are compatible, convertible to their sums.
And we can see here a typical naive compile-time assertion over the types of the matrix-matrix product. One issue here is that the compiler error is unreadable when the user attempts an invalid product. Another issue is an apparent equivalent reimplementation of the underlying backend operation for the purpose of type verication, a good argument for the library backend to support strong types directly.

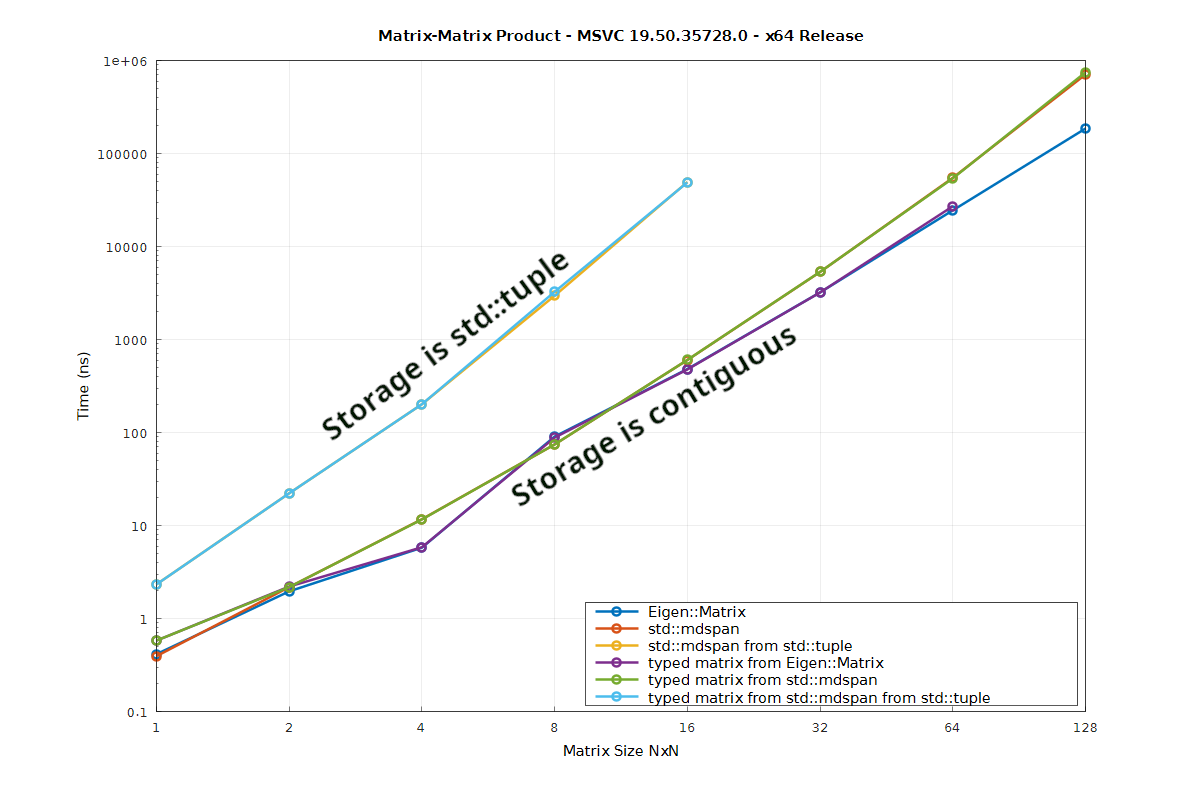

PERFORMANCE
Todo:
* eigen product
* mdpsan product
at
template <auto... Indexes>
decltype(auto) at(this auto &&self)
requires(sizeof...(Indexes) >= rank);
{
// ...
return cast<qualified_element, qualified_underlying>(
self.storage[std::get<0>(std::tuple{Indexes...}),
std::get<1>(std::tuple{Indexes...})]);
}
Let's get back to implementation of the typed matrix methods. The simplified implementation of the `at` member function shown here introduces the customization point object `cast`. This element caster objet allows the end-user to teach the library how it can convert underlying type to and from quantity types. This single abstraction is the only place where the explicit conversions take place. For the mp-units quantity library the template specializations of the customization point use the explicit `numerical_value_in` quantity member function to obtain the underlying type value or inversely equip the underlying type value with the reference unit. Note the difficulties in preserving the value category of the type for rvalues and lvalues. The implementation can be thought of the equivalent of the standard library forward-like utility, with an injected cast, and index look up and verification.
User Defined Literal
template <char... Digits>
constexpr auto operator""_i(); // Returns an integral constant.
// Equivalents for heterogenous matrices:
x0.at<0, 0>()
x0[0_i, 0_i]
x0(0_i, 0_i)
At Conversion
state x0{3. * m, 2.5 * m / s};
x0.at<0>() = 2 * m / s; // lvalue reference assignment?
template <mp_units::Quantity To, typename From>
struct element_caster<To &, From &> {
To & operator()(From &value) {
static_assert(std::same_as<typename To::rep, From>);
static_assert(sizeof(To) == sizeof(From));
static_assert(alignof(To) == alignof(From));
To __attribute__((__may_alias__)) *q{
reinterpret_cast<To *>(&value)};
return *q; // 𐄂 Undefined Behavior
}
};
// This conversion is Undefined Behavior (UB): strict-aliasing violation,
// type punning dereferencing. The `reinterpret_cast` is not a constant
// expression. The function can never be evaluated at compile-time. The
// function will never be `constexpr`.
Alternatives
Alternative
Drawback
lvalue reference
Undefined behavior. Loss of constexpr.
setter
Loss of ergonomics. Loss of structured bindings.
reference wrapper
Loss of ergonomics. Loss of structured bindings. Requires type support.
strong storage
Performance loss.
Next
Compose More Safeties
Compliance, Ergonomics
I will close today's session by looking toward the future. We've now seen the principles driving a strongly typed linear algebra with examples of implementation and usage. That's only the beginning. Unfortunately unit and dimension are incomplete for a more comprehensive safe physical linear algebra! Additional safety capabilities are critical to consider such as quantity kind, character semantics, index access, or reference frames. I want to explore these areas, perhaps with yet another composition.
Typed Linear Algebra
François Carougegithub.com/FrancoisCarouge
I believe this is the first extensive open source and permissive implementation of a typed linear algebra library. I hope this talk will help you build safer linear algebra applications. This QR code and link will take you to the library. At this time I would like to thank you and I would welcome any question.
Abstract
Typed Linear Algebra
Summary
Composed Backend
Forward Operations
Inject Conversions
Deducing This
Constexpr For
Expression Template
To summarize our journey today.
We composed a matrix into a typed matrix to facade the physical quantity types.
The linear algebra operations are forwarded to their equivalent backend while enforcing the type safety.
End-user inject type conversion in a single customization point.
We leverage deducing this to provide a single implementation for the 2, 4, 8, 16 repetitive function versions.
We used template for expression statement to perform compile-time verification over vectors and matrices.
We kept the library transparent to third party expression template design.
Opportunities
Print Format
Template For
Compiler Compliance
Benchmarking
std::linalg
Index Safety
Frame Safety
Taxonomy Safety
The design presents many improvement opportunities.
A low hanging opportunity is the printing format which is a minimal implementation that follows the standard library default without any of its formatting options.
There may be opportunities to simplify the implementation with the C++26 template for expansion statement.
Another opportunity is the library supports the latest versions of the three major compilers and the tip of the supporting libraries. Compatibility and stability is a fun challenge a number of bug reports and fixes have been generated in these projects.
Benchmarking is required to demonstrate the abstraction remains zero cost to enable adoption.
`std::linalg` in C++ 26 comes with many more operations to support. I wonder if reflection could help in generating the operation wrappers for the typed matrices.
I have reached a similar conclusion to Daniel Withopf presentation in 2022 that is, safe linear algebra with physical quantities require index safety. The at member should not use i, j indexes but strongly typed indexes encoding things like the reference frame, character of the quantity, or additional semantic. I suspect there exists an opportunity to implement index safety by yet another composition over the typed matrix, perhaps an indexed matrix.
Finally, there are Jacobian and Information matrices which may need an additional exponent for their type collections to differentiate their taxonomy in operations.
These are just a few of the next steps.
Mp-units six safety levels:
* Dimension Safety - Prevents mixing incompatible dimensions
* Unit Safety - Prevents unit mismatches and eliminates manual scaling factors
* Representation Safety - Protects against overflows and precision loss
* Quantity Kind Safety - Prevents arithmetic on quantities of different kinds
* Quantity Safety - Enforces correct quantity relationships and equations
* Mathematical Space Safety - Distinguishes points, absolute quantities, and deltas
Daniel Withopf linear algebra desired properties:
Compile-time bounds
Expressive entry names
Heterogenously typed vectors/matrices
Typed checks for all operation
Coordinate frame annotations.
Motivation:
[Ariane flight V88] - Ariane 5 rocket destroyed due to unit conversion error ($370M loss)
[Mars Orbiter] - Lost due to pound-force vs. Newton confusion ($327M loss)
[Columbus] - Got Americas “wrong” due to distance unit misunderstandings
Slide ideas:
The whole mess of returning a quantity reference from rep storage.
The whole mess of returning a reference quantity with its side effects.
Alternatives to storage: e.g. storing quantities.
---
